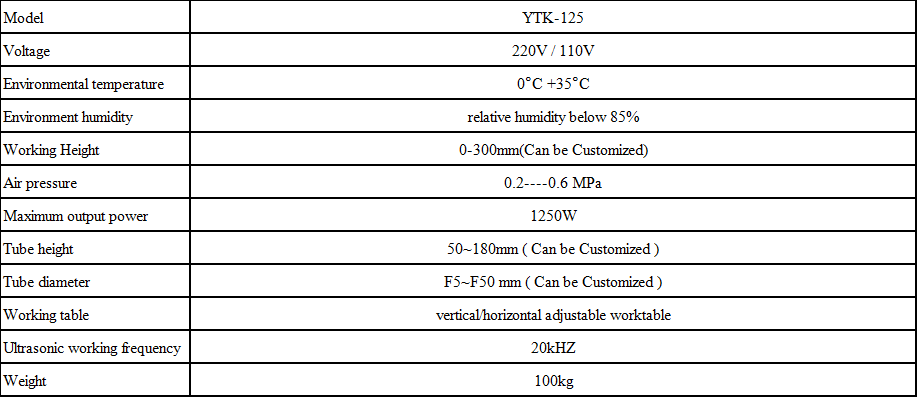

Model: YTK-125
Voltage: 220V / 110V
Environmental temperature: 0°C +35°C
Environment humidity: relative humidity below 85%
Working Height: 0-300mm(Can be Customized)
Air pressure: 0.2----0.6 MPa
Maximum output power: 1250W
Tube height: 50~180mm ( Can be Customized )
Tube diameter: F5~F50 mm ( Can be Customized )
Working table: vertical/horizontal adjustable worktable
Ultrasonic working frequency: 20kHZ
Weight: 100kg

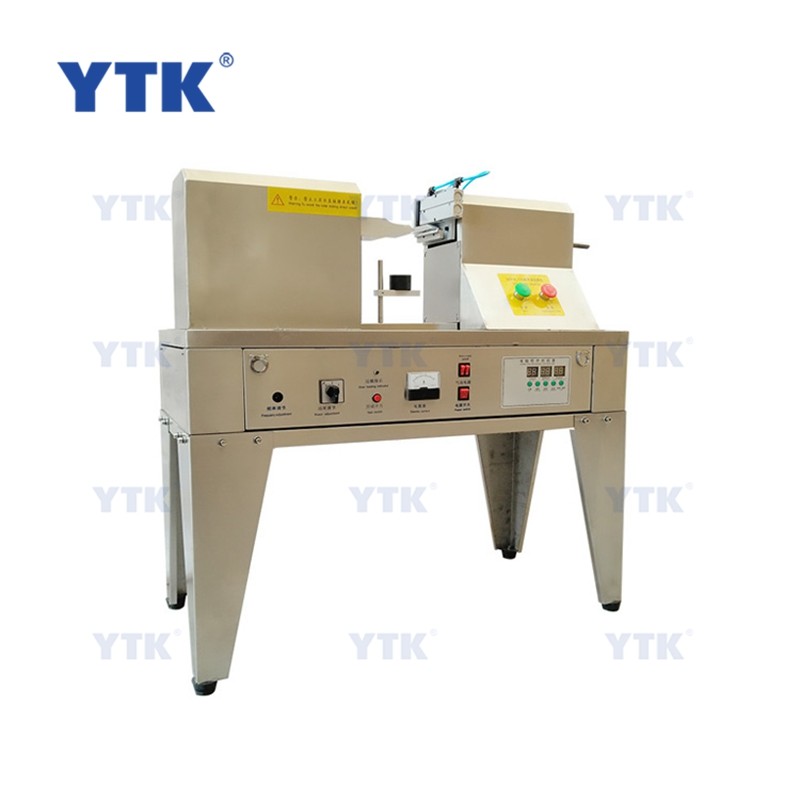

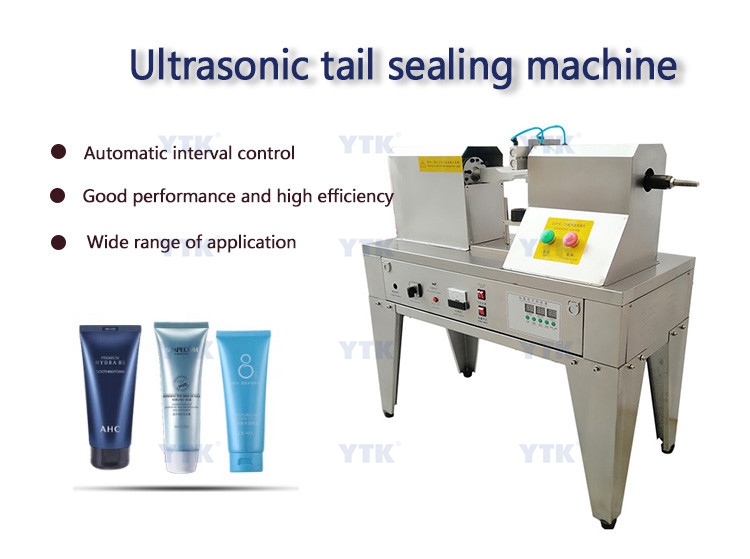

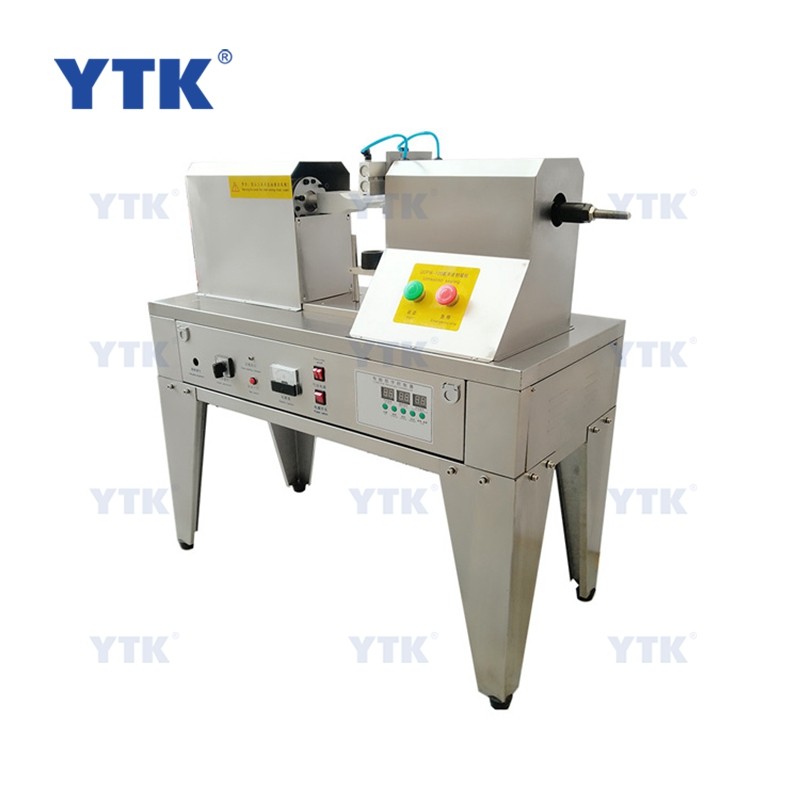

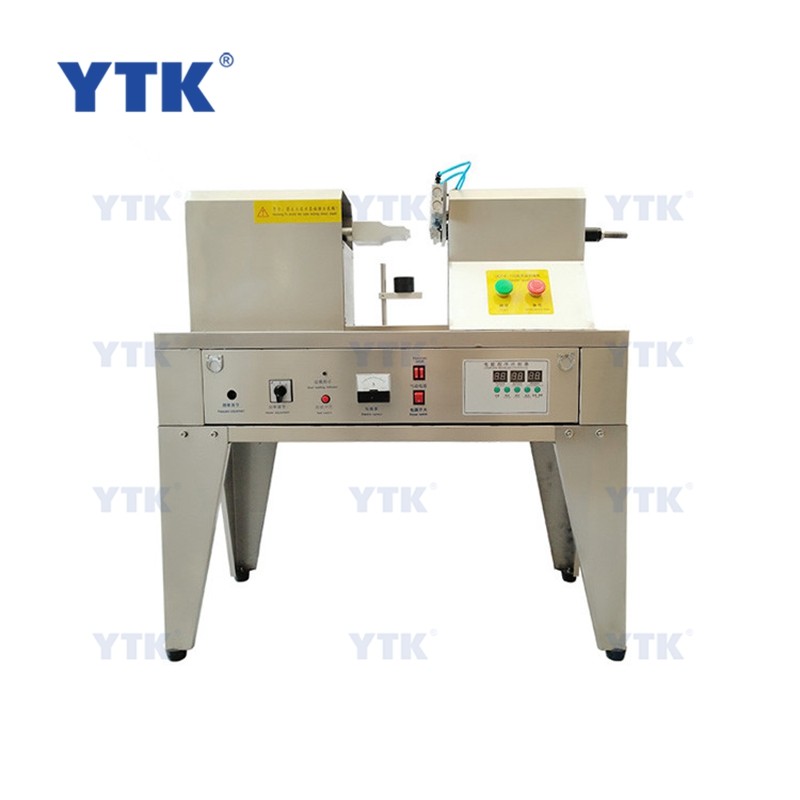

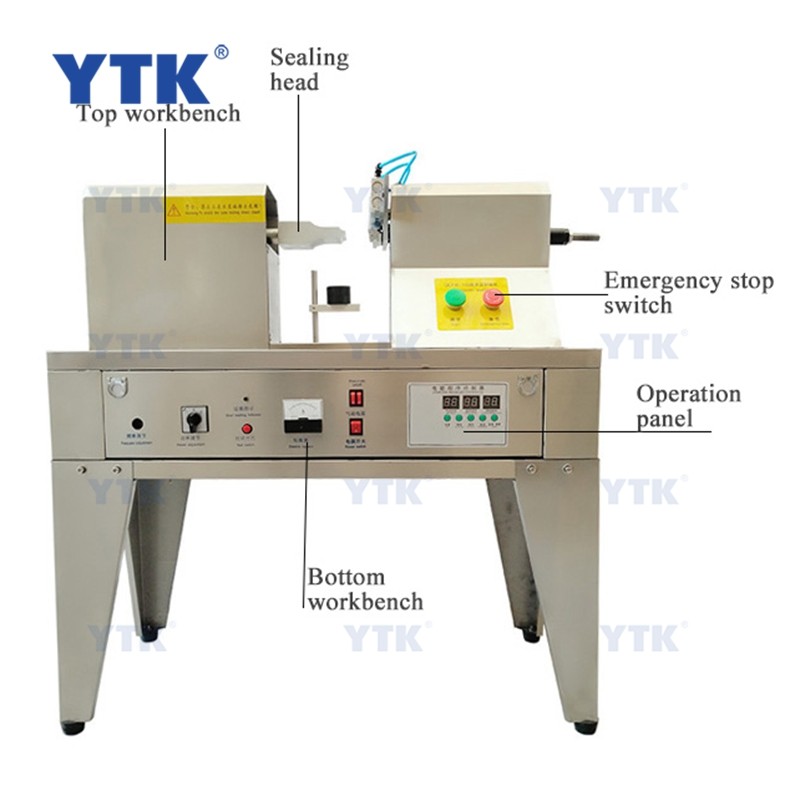

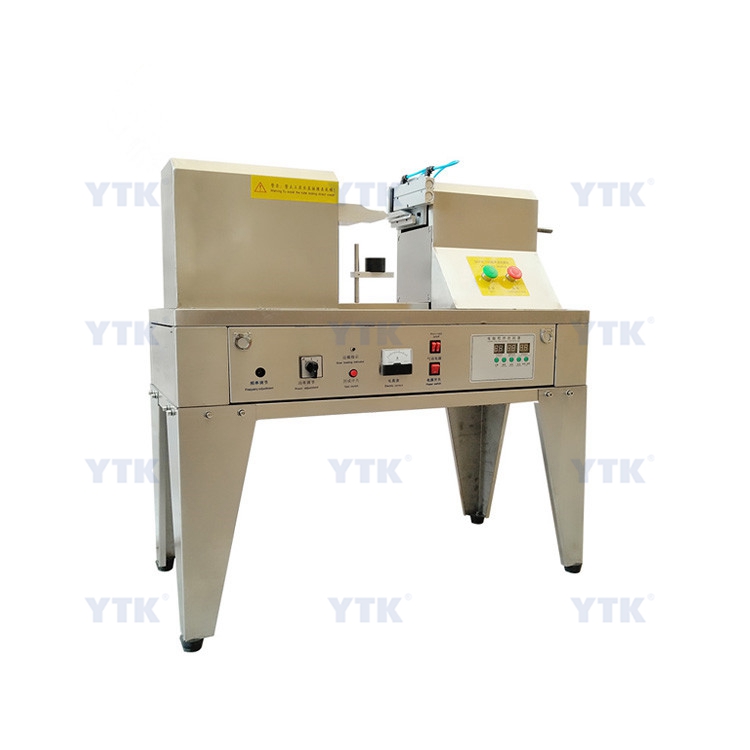

YTK-125 semi automatic tube Ultrasonic Aluminum Plastic PE Lami Soft Cream Cosmetic Toothpaste Tube End Sealing Machine For Sale
Introduction:
Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.
Utilizing the energy produced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .

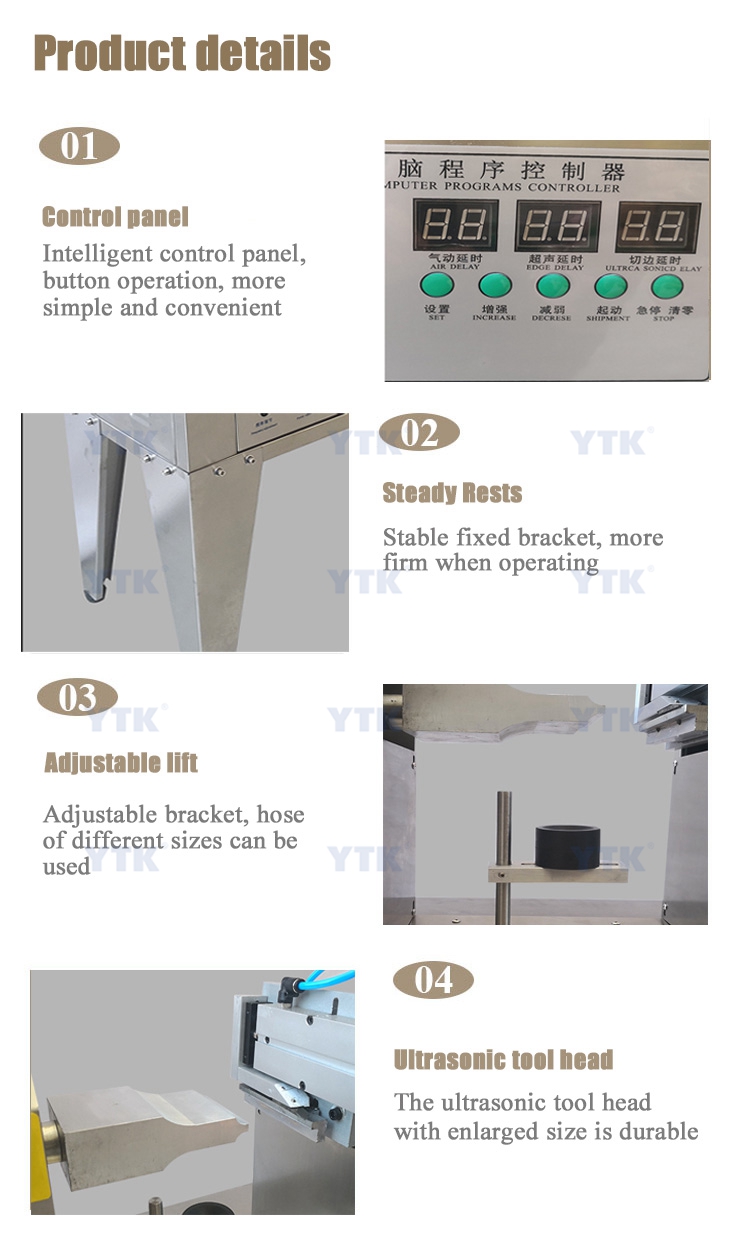

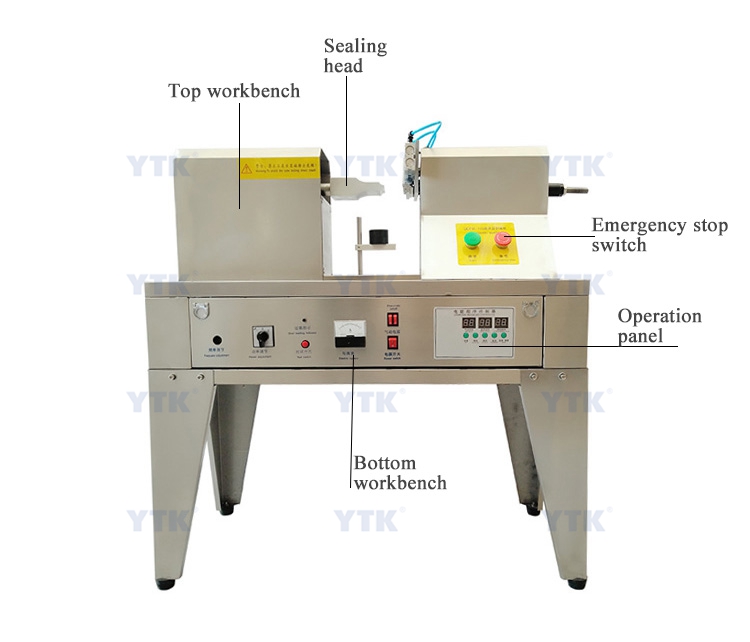

Machine Feature:
1. Two dimensional adjustment of work piece platform, it is easy to operate.
2.It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.
3. Overload protection, phase separation protection, power-fail protection.
4. Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.
5. It can sealing soft tube also can printing date and cutting.
Technical Parameters:
