Model: YTK-VMP8H 6L
Voltage: 220V/110V
Material of Pump: SS316
Power: 3KW
Max flow rate: 6L/min
Container Size: Φ20-160mm H30-300mm
Maximum tube suction range: 2M
Filling accuracy: ≤±1%
Anti drip function: Yes
Power and memory function: Yes
Filling range suggestion: 10ML-2000ML
Size of air compressor connector: OD8mm
Weight: About 199KG
Packing Size: 2000*820*1580MM

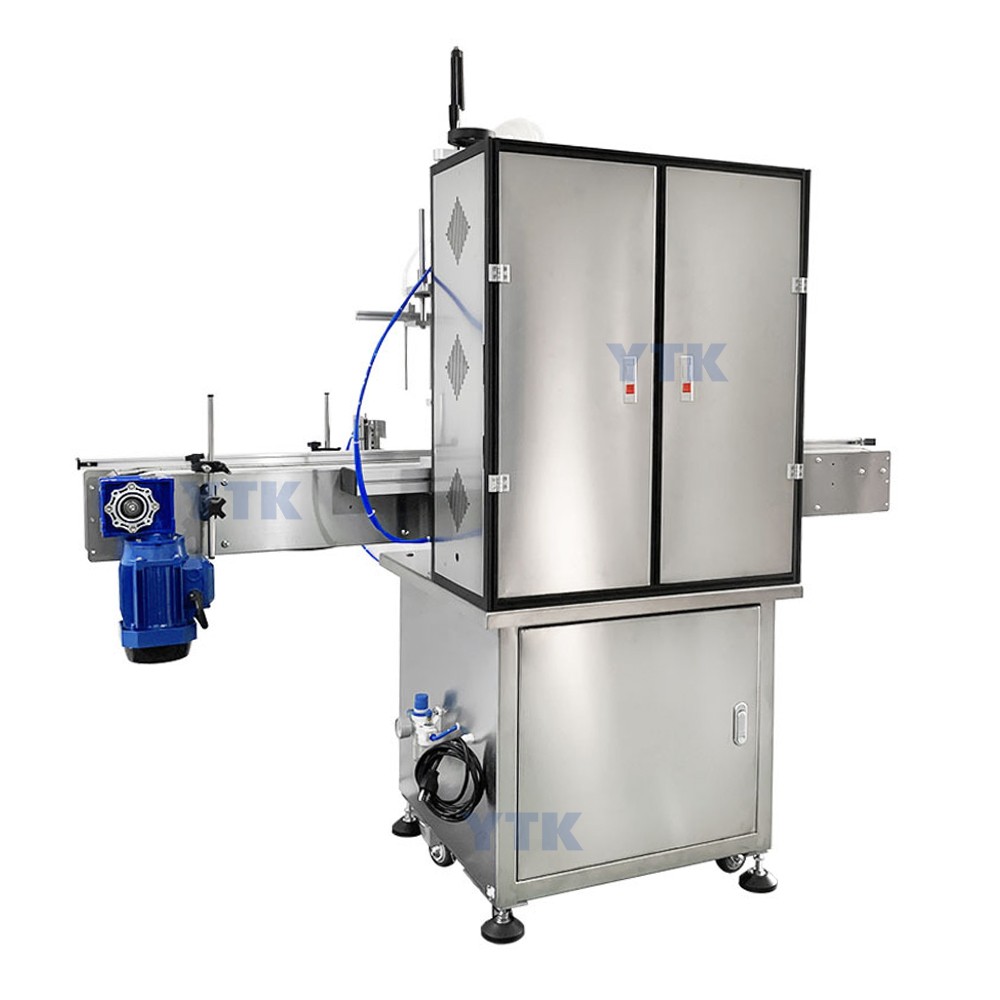

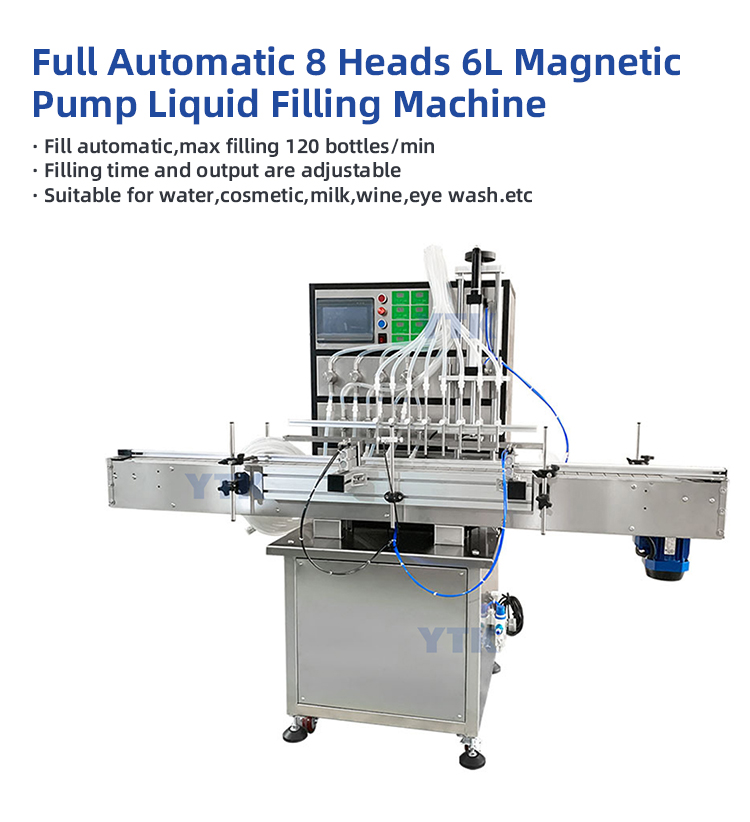

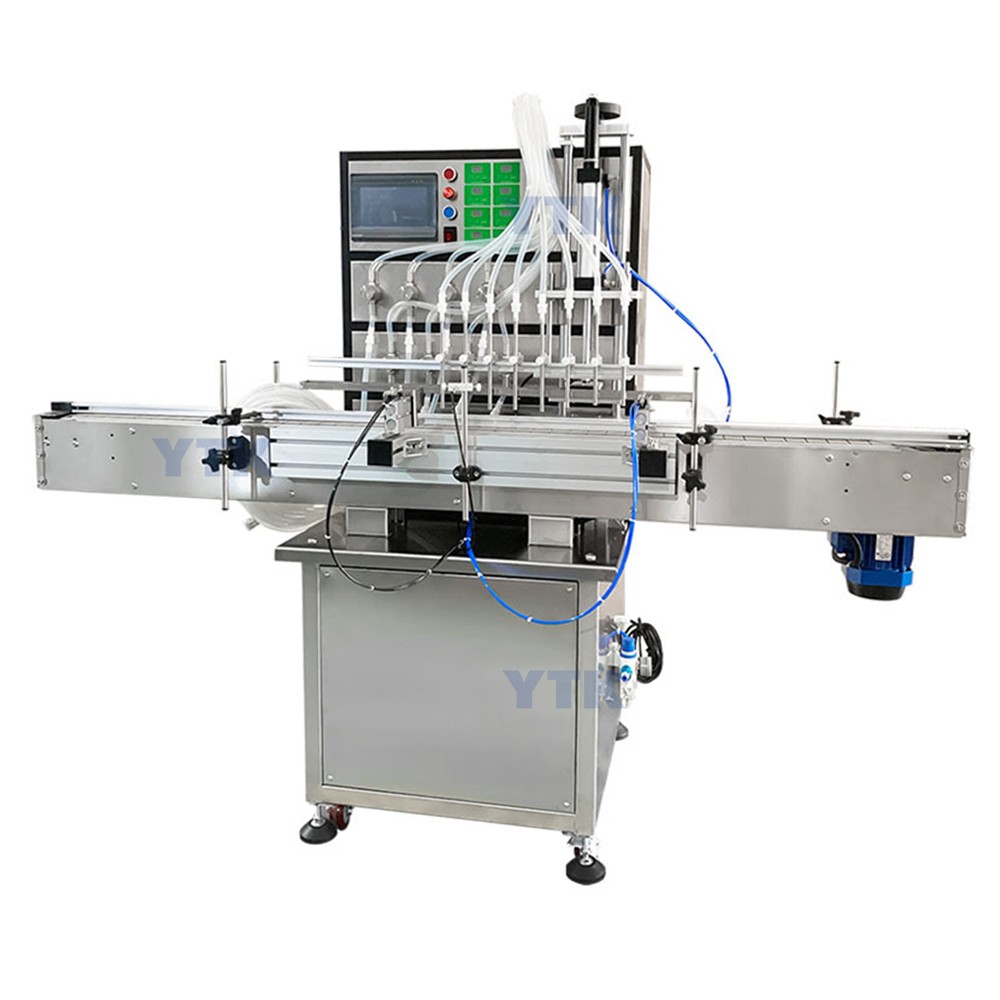

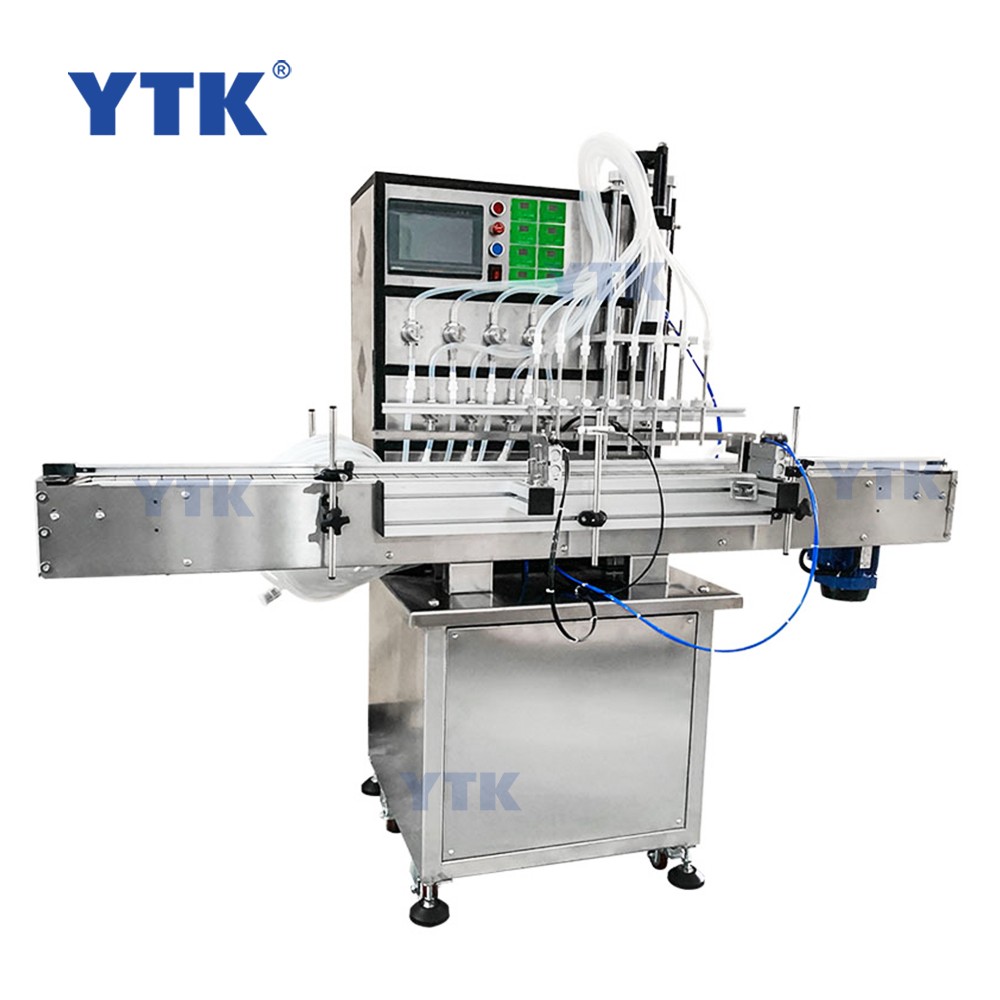

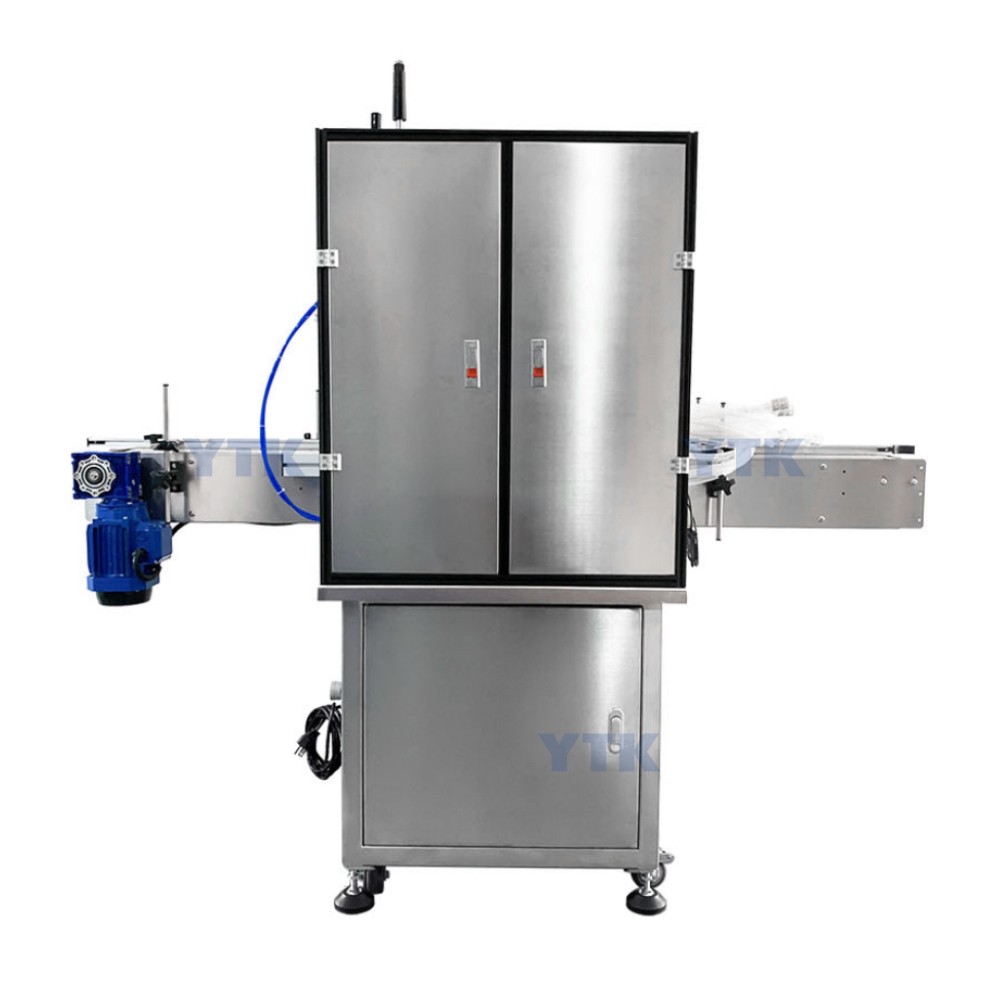

YTK-VMP8H 6L 8 Heads Water Beer Wine Essential Oil Honey Perfume Detergent Shampoo Bottle Liquid Filling Machine Fully Automatic
Introduction:

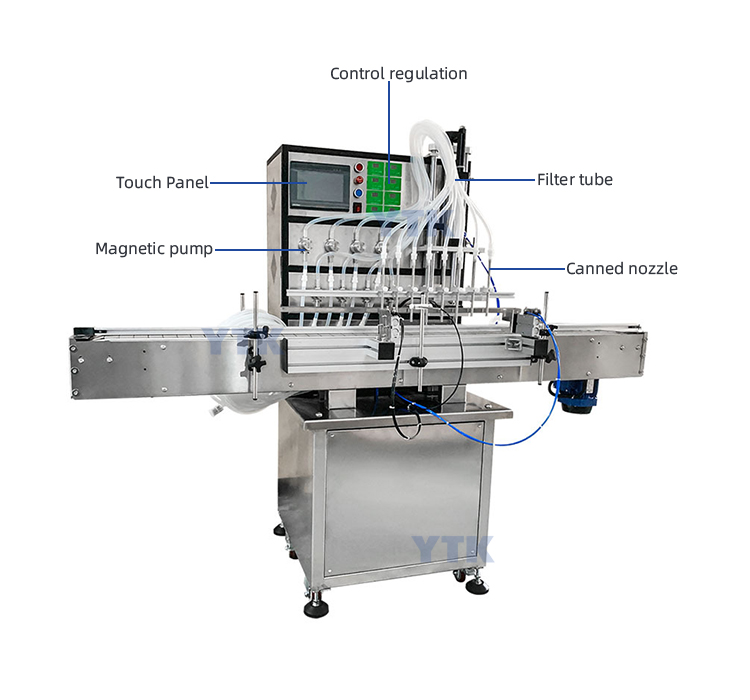

This 8-head automatic magnetic pump filling machine body is made of all stainless steel. It comes with automatic counting function. The performance is reliable and the measurement is accurate. It is an excellent machine for filling particle-free liquid. The filling nozzles can be customized according to your requirements(like 4 or 6), and customers can control each nozzle separately.
Application:
Wide range of use, such as: various pharmaceuticals (alcohol, eye drops), chemicals (solvents, acetone), cosmetics, food and other non-particulate liquids.
Details Display:

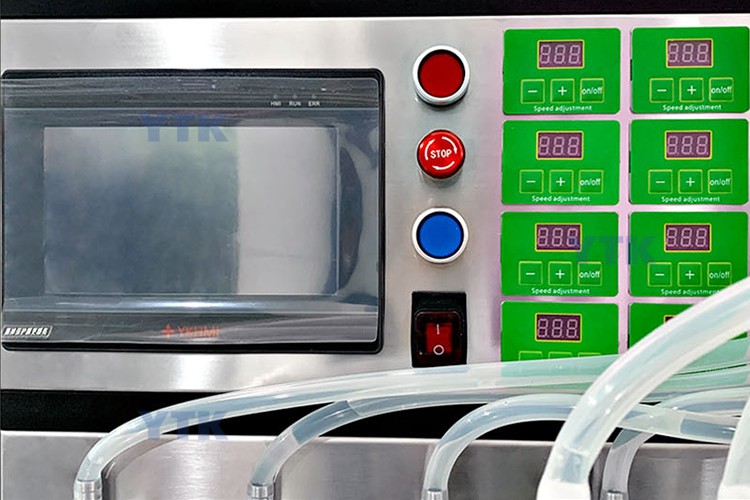

1. Control panel
This machine uses touch screen control panel, which is easy to operate. The filling time and other working data can be adjusted.

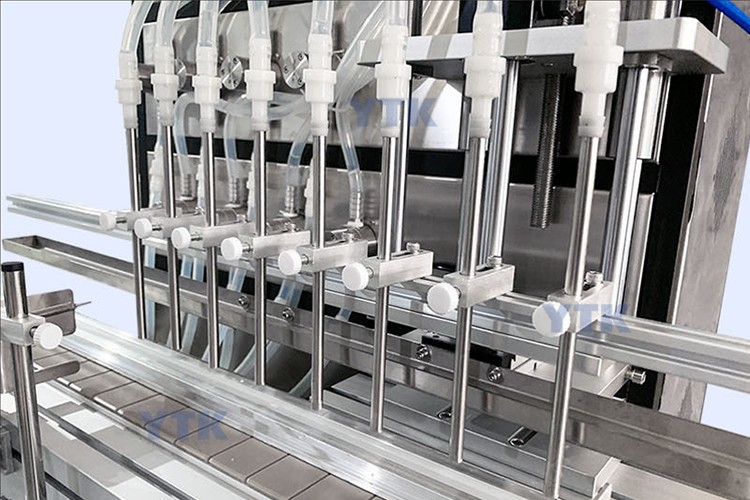

2. Filling nozzle
Filling nozzle with anti-drip function. Machine filling speed is fast and accuracy is within ±1%.

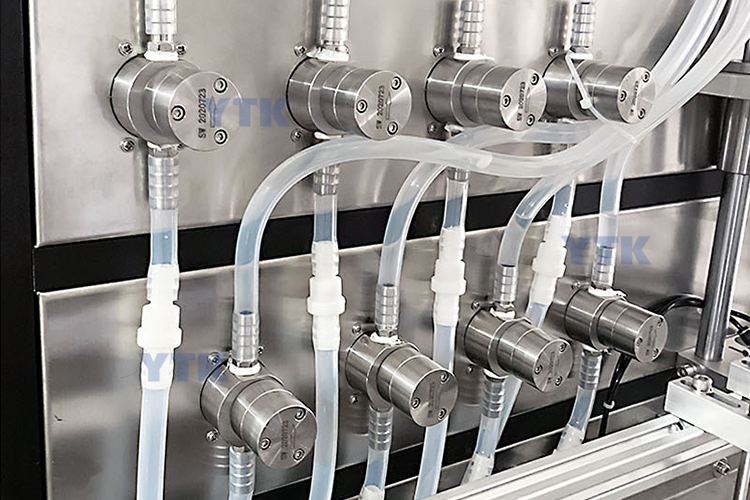

3. Magnetic Pump
The adoption of magnetic pump design makes the machine resistant to high temperature, corrosion, acid and alkali.

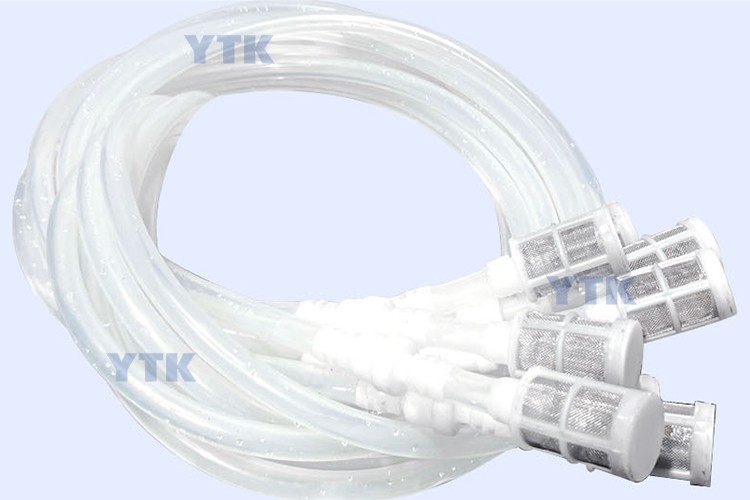

4. Filter
High Quality filter,can filter unnecessary particle.
