Model: YTK-220
Label length: 25~300MM
Label width: 25~150MM
Suitable bottle diameter: φ20~120mm
Outside diameter of standard roll: Φ300MM
Inside diameter of standard roll: φ76MM
Labeling accuracy: ±1MM
Voltage: 220V/110V 50-60HZ
Power: 1.5KW
Conveying speed: 16m/min
Labeling speed: 20~160pcs/min
Dimensions: 2150*1000*1600mm
Machine Weight: About 300KG

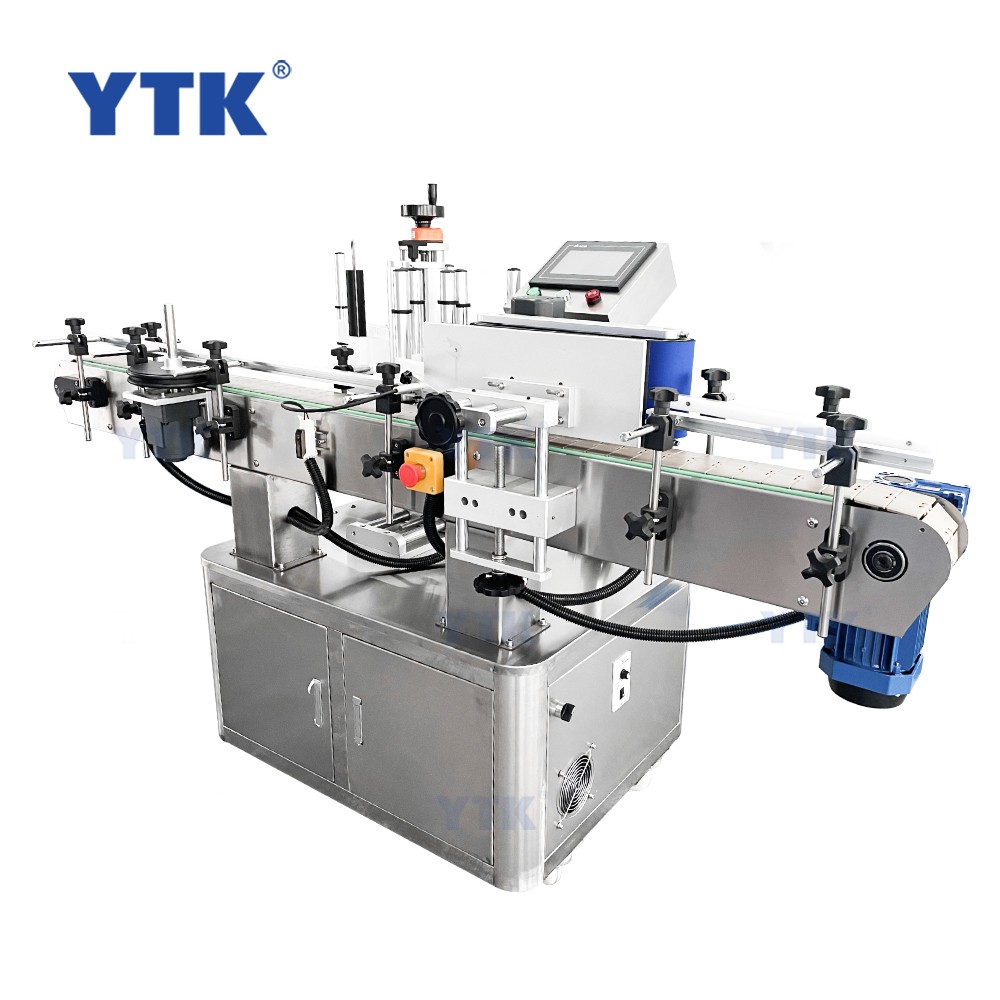

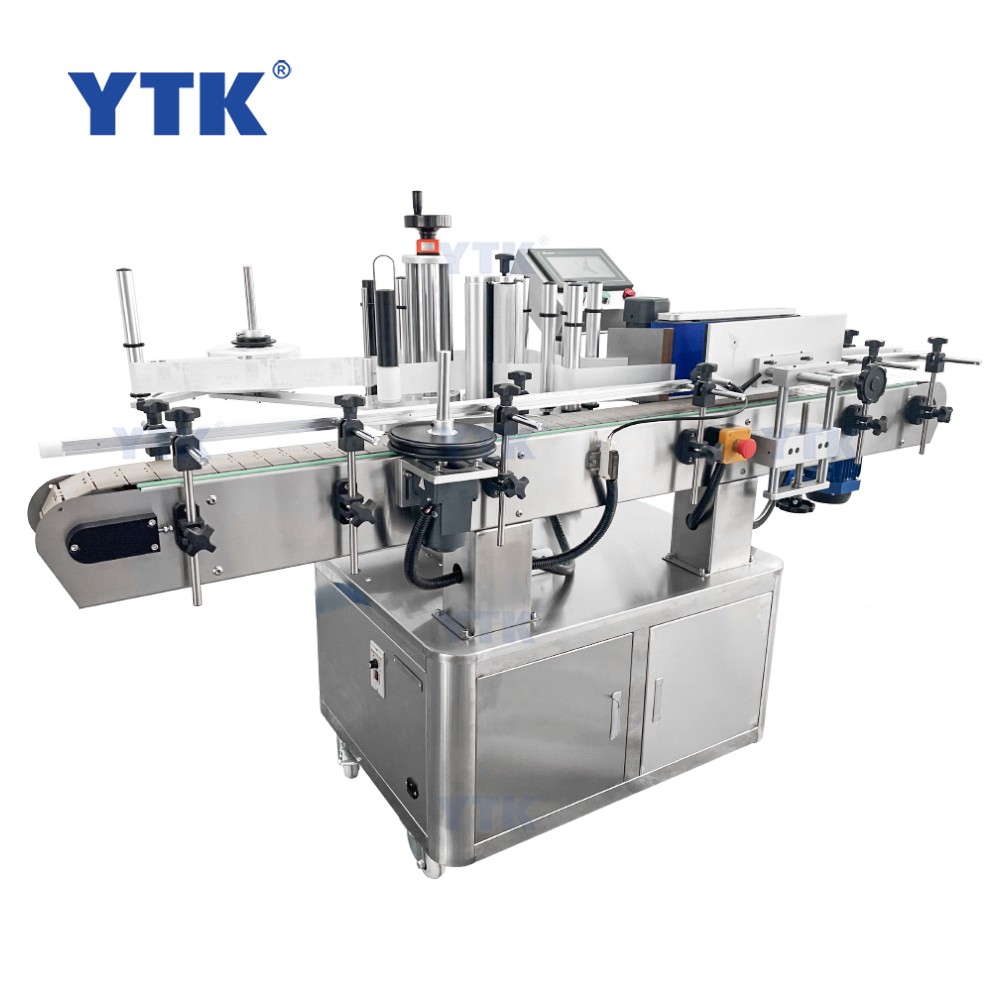

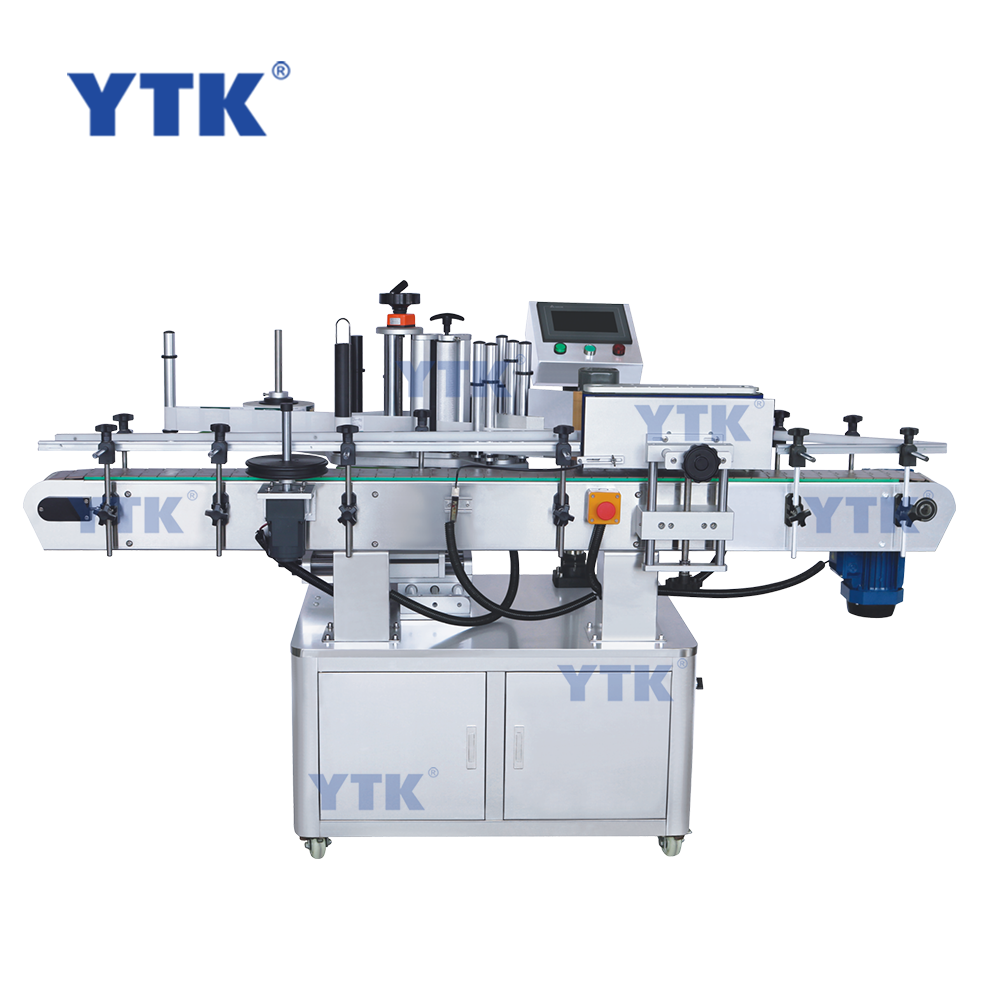

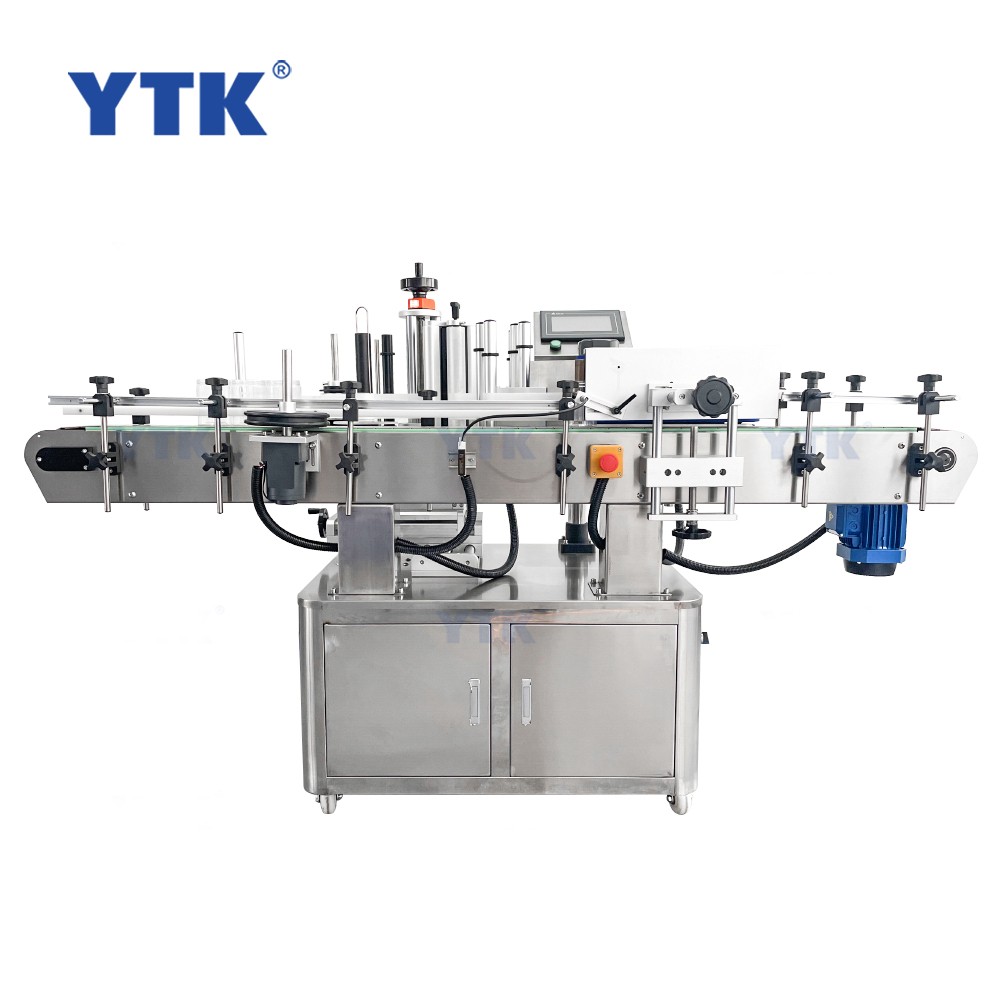

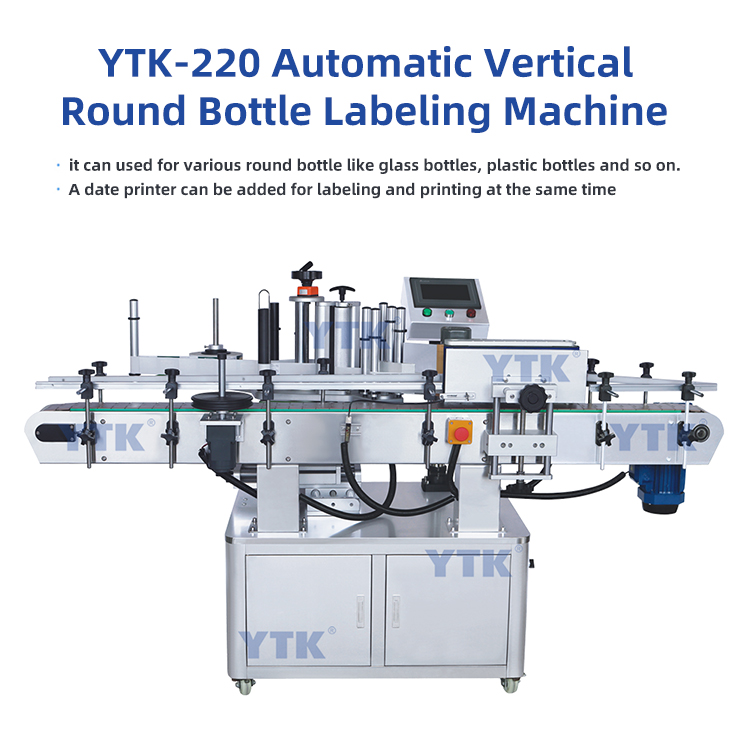

YTK-220 Guangdong Automatic Small Vial PET Glass Wine Juice Jar Tin Can Bottle Round Bottle Adhesive Labeling Printing Machine
Description:
YTK-220 automatic vertical labeling machine is for glass bottles, plastic bottles and other cylindrical objects, tapered objects can be customized, but also according to product needs to increase the printer; the machine design is simple, light weight, beautiful. And it can be used independently or connected with other machines into production lines.
Details Display:

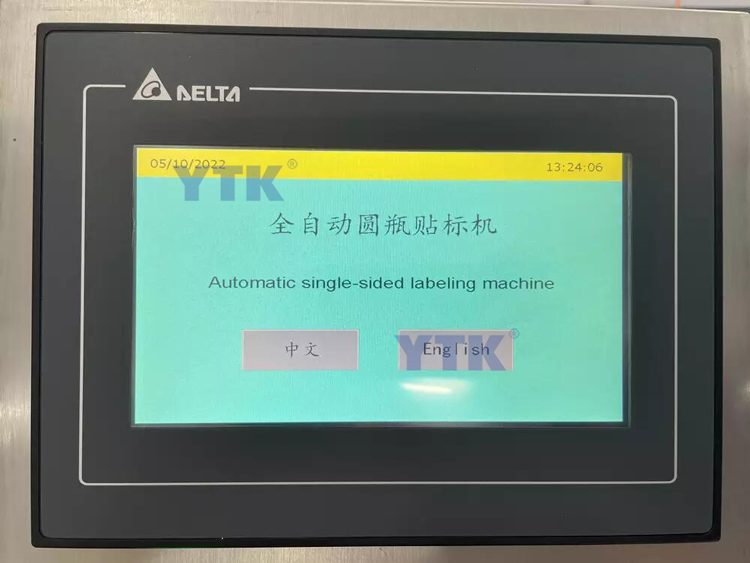

1. Operation Panel
Intelligent operation panel make the working data visual,this help to control the machine better.

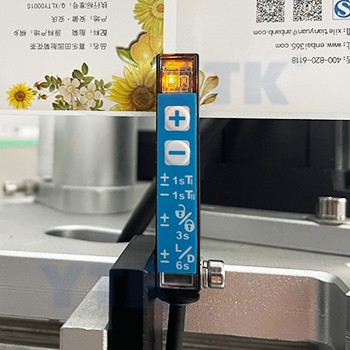

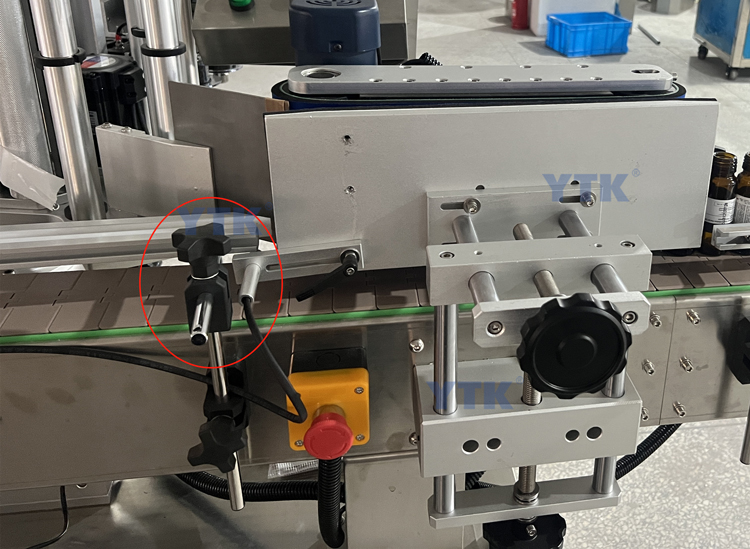

2. Electric eye
It can detect round bottles once they are transferred. It won’t work unless the round bottle is detected. This prevents from missing bottles and wasting labels.

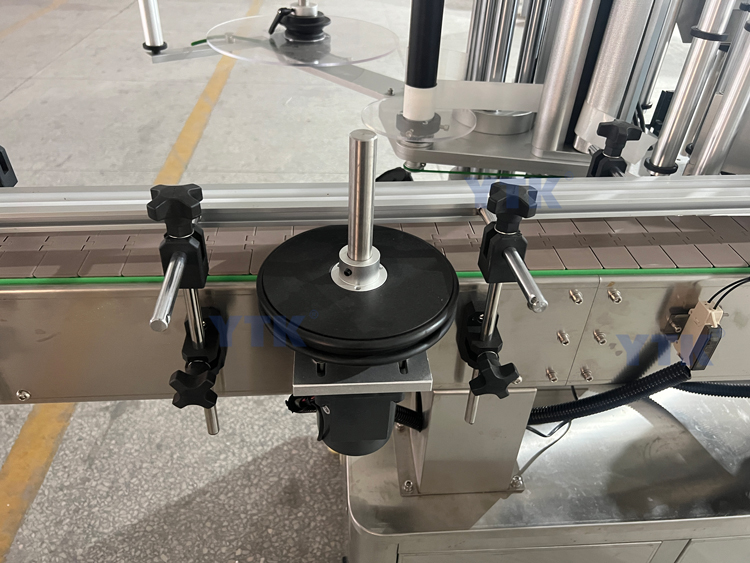

3. Bottle separating device
It can separate passing through bottles, help to control the bottle distance.

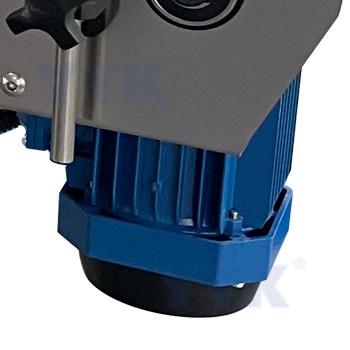

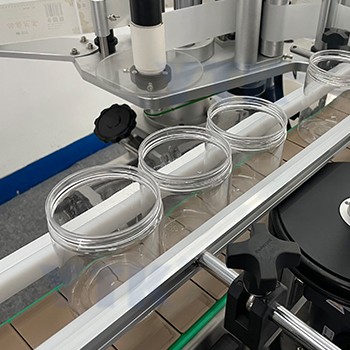

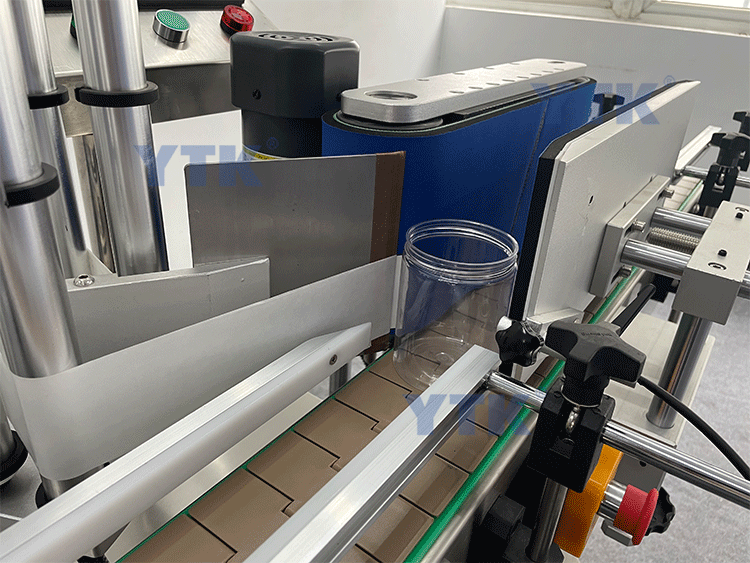

4. Conveyor
The conveyor is used to transfer round bottles. The working speed is adjustable, operator can adjust the speed according to their need. The width of feeding inlet can be adjusted according to bottle diameter.
Application:
