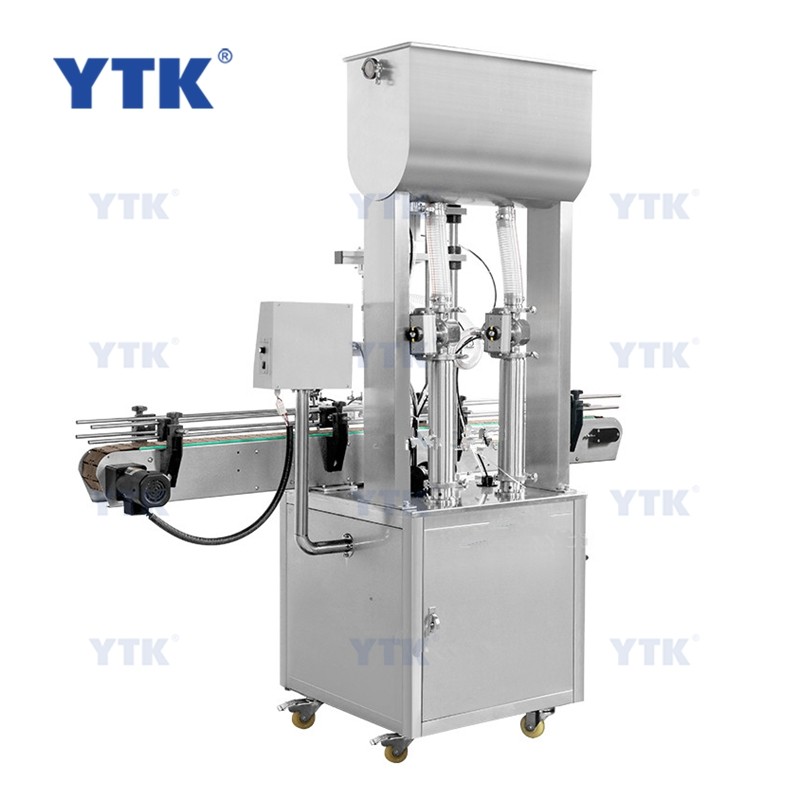

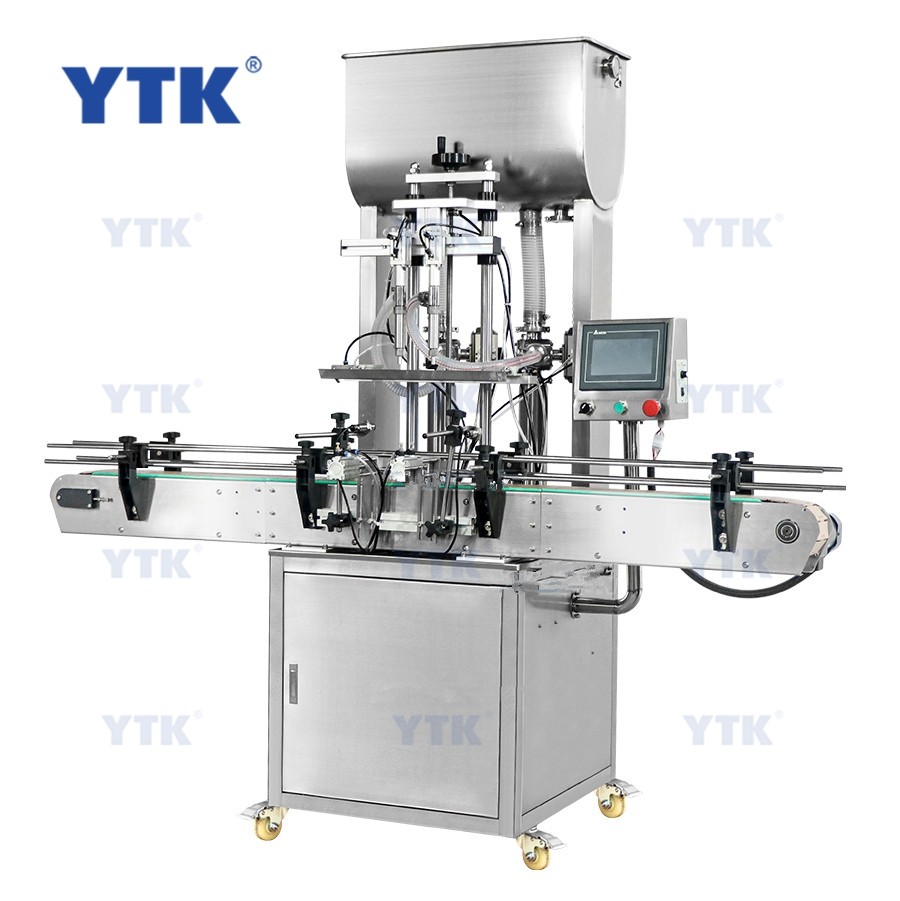

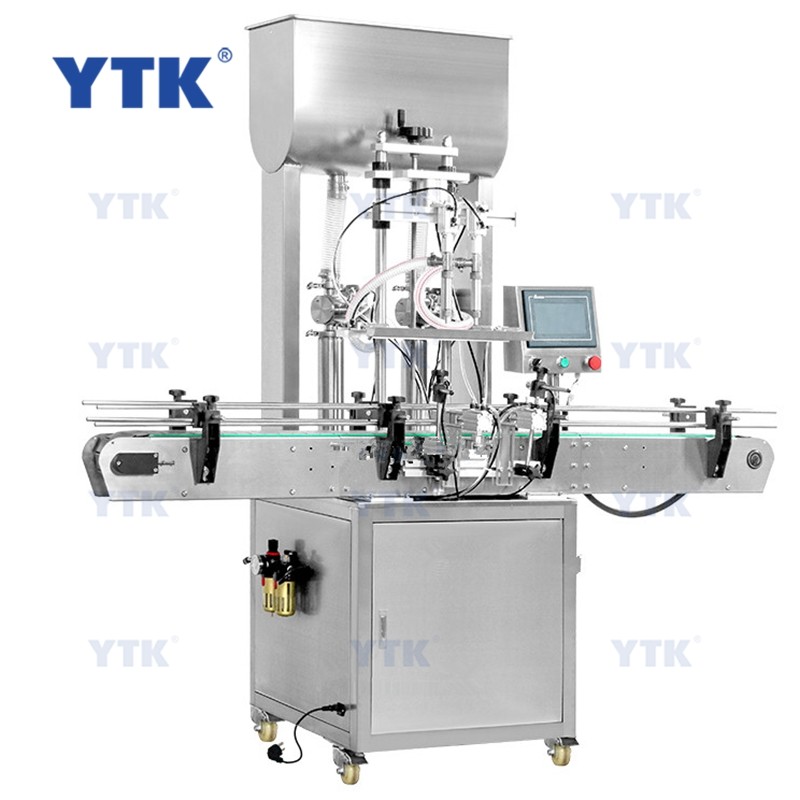

YTK-QZDG2 100-1000ML Fully Automatic Vertical Garlic Sauce Honey Tomato Cream Ointment Paste Can Bottle Filling Machine

Model: YTK-QZDG2 100-1000ML
Voltage: 110/220V 50-60HZ
Flling range: 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working speed(base on water): 10-40bottles/min
Filling accuracy: ≤+1%
Conveyor size: About 1990*100mm(L*W)
Size of filling nozzle: φ10mm
Size of air compressor connector: φ10mm
Power of whole machine: 800W
Net weight/Gross weight: About 220kg/370kg
Machine size: About 2000*1200*2300mm
Package size: About 1150*1000*2130mm

EMAIL

YTK-QZDG2 100-1000ML Fully Automatic Vertical Garlic Sauce Honey Tomato Cream Ointment Paste Can Bottle Filling Machine

Introduction:

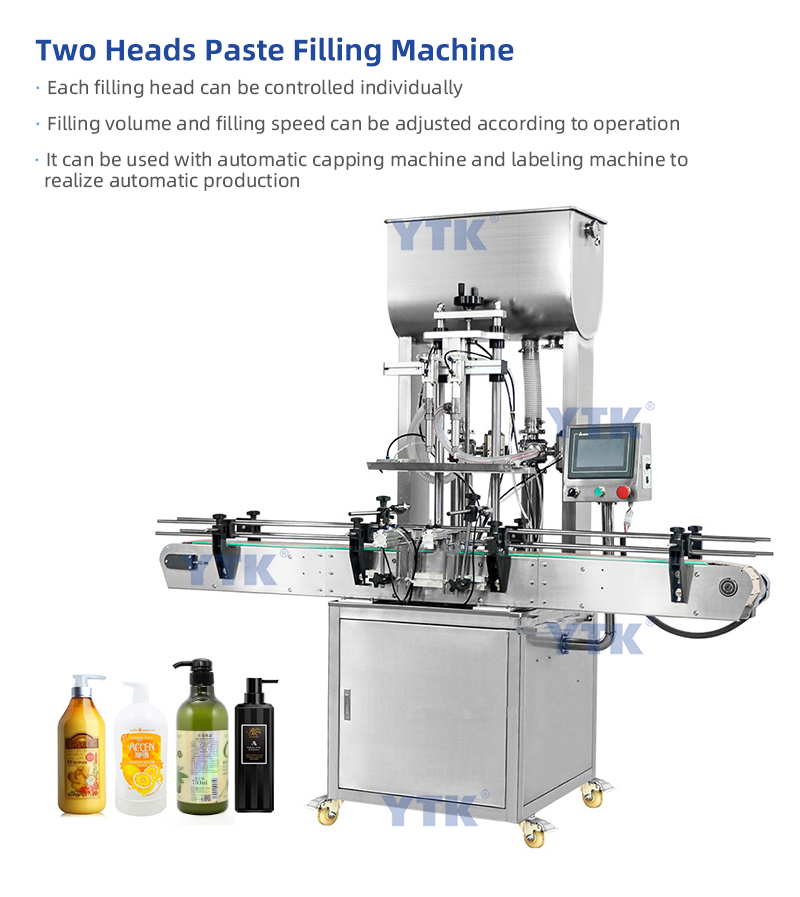

This automatic filling machine is with larger air cylinder which can help to fill liquid faster.This machine is easy to operate and each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.

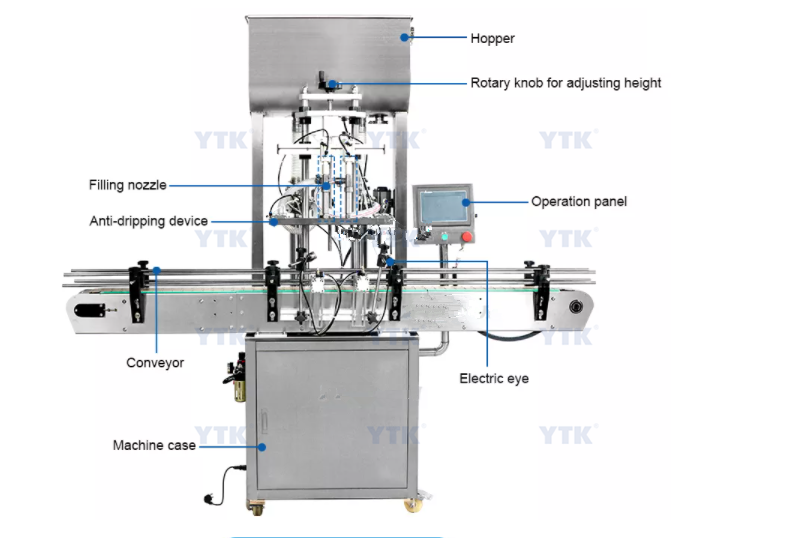

Details Display:

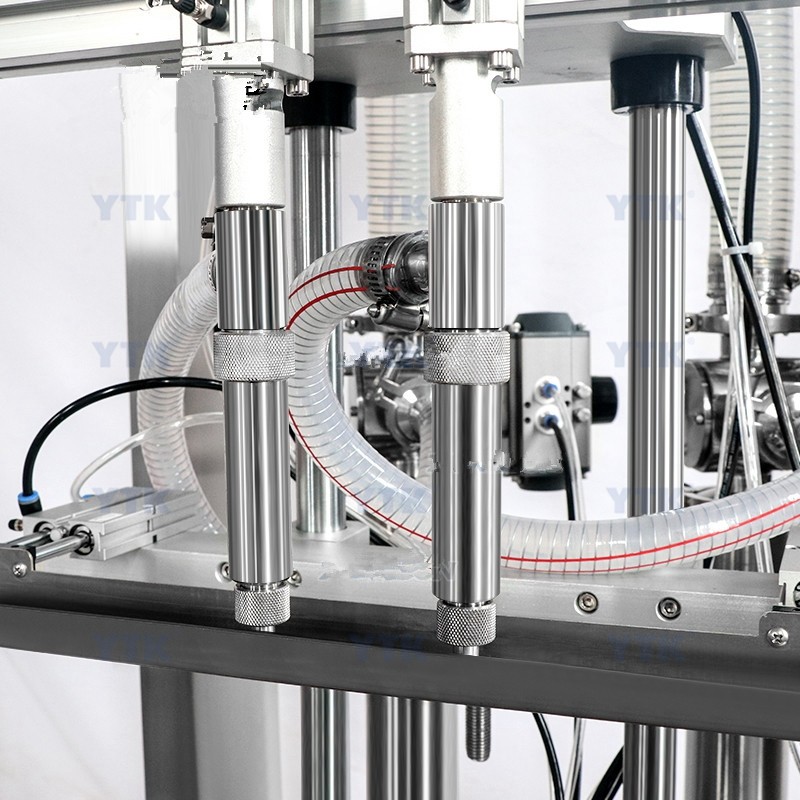

1. Filling nozzles with anti-dripping design, we can customize multiple filling nozzle as production needs.Each nozzle of this machine can be controlled separately.

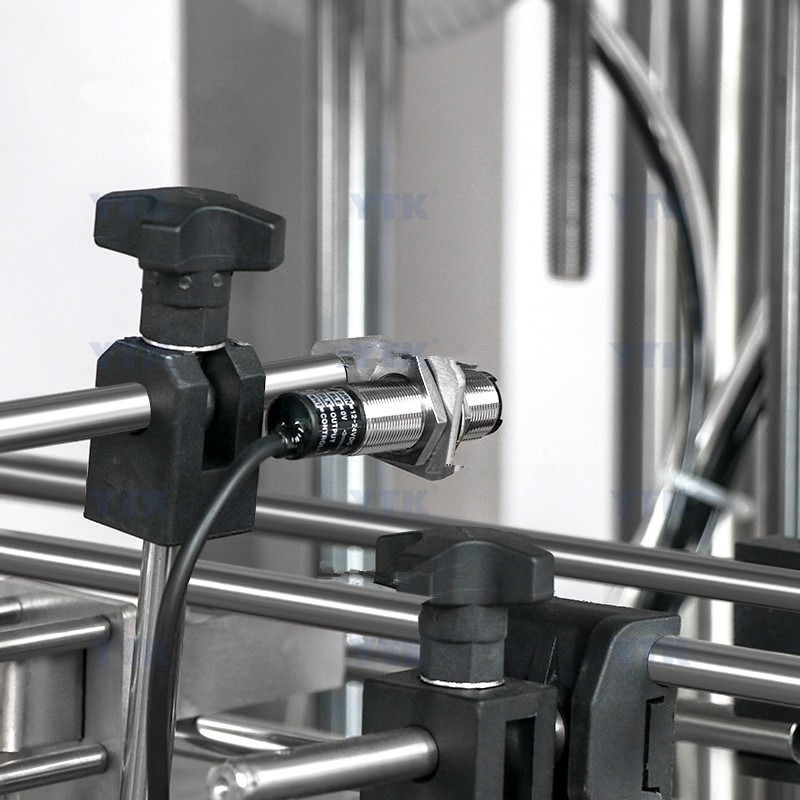

2. The bottle sensor can be used to detect bottles and prevent from missing or wasting bottles,this ensures the filling accuracy.

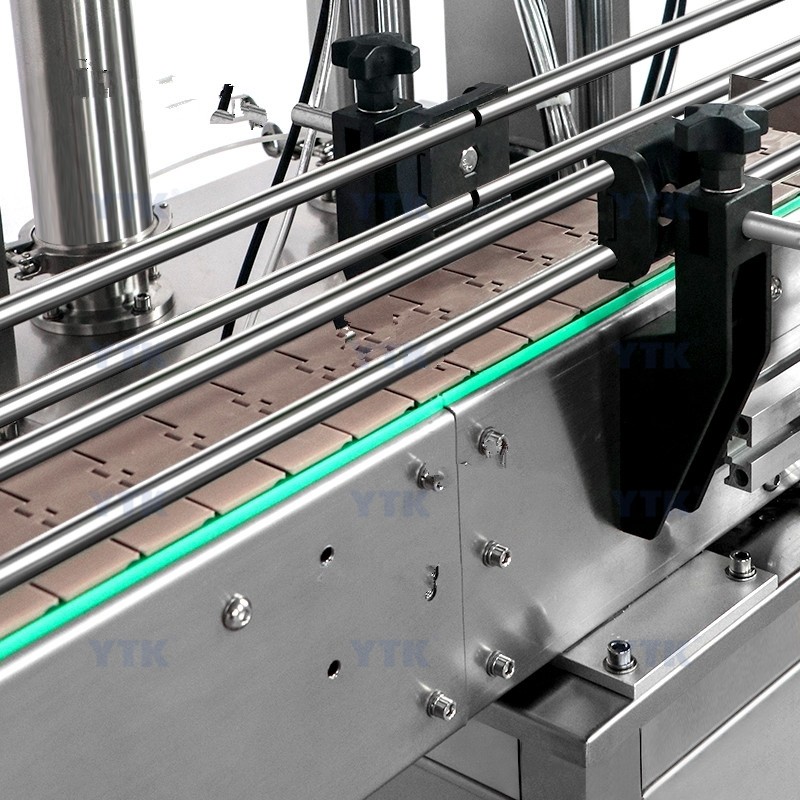

3. High quality conveyor belt makes it smoother when transferring bottles, the size of it is 1990mm*100mm(L*W), we can customize the size according to your production needs.


Application:
